So you want to be an electrician in Newcastle Upon Tyne
Below I have scraped actual past City & Guilds Papers for you to look at, have a go & more importantly revise. People say lightning never strikes twice but who knows you might see a previous question in your upcoming exam.
Download the Spring 2018 Exam paper
Download the April 2022 Exam Paper
Cable Calcs are an important part of the 8202 qualification and integral to being a competent electrician, they allow you to confirm installations are by the regs & more importantly they are safe.
Attempt on your to produce a full cable calc for the following installations. For the below image take the Maximum demand after Diversity to be 55KW, with an assumption that the factory is on a TNS 3PH supply.
Attempt on your to produce a full cable calc for the following installations. For the below image take the Maximum demand after Diversity to be 55KW, with an assumption that the factory is on a TNS 3PH supply.

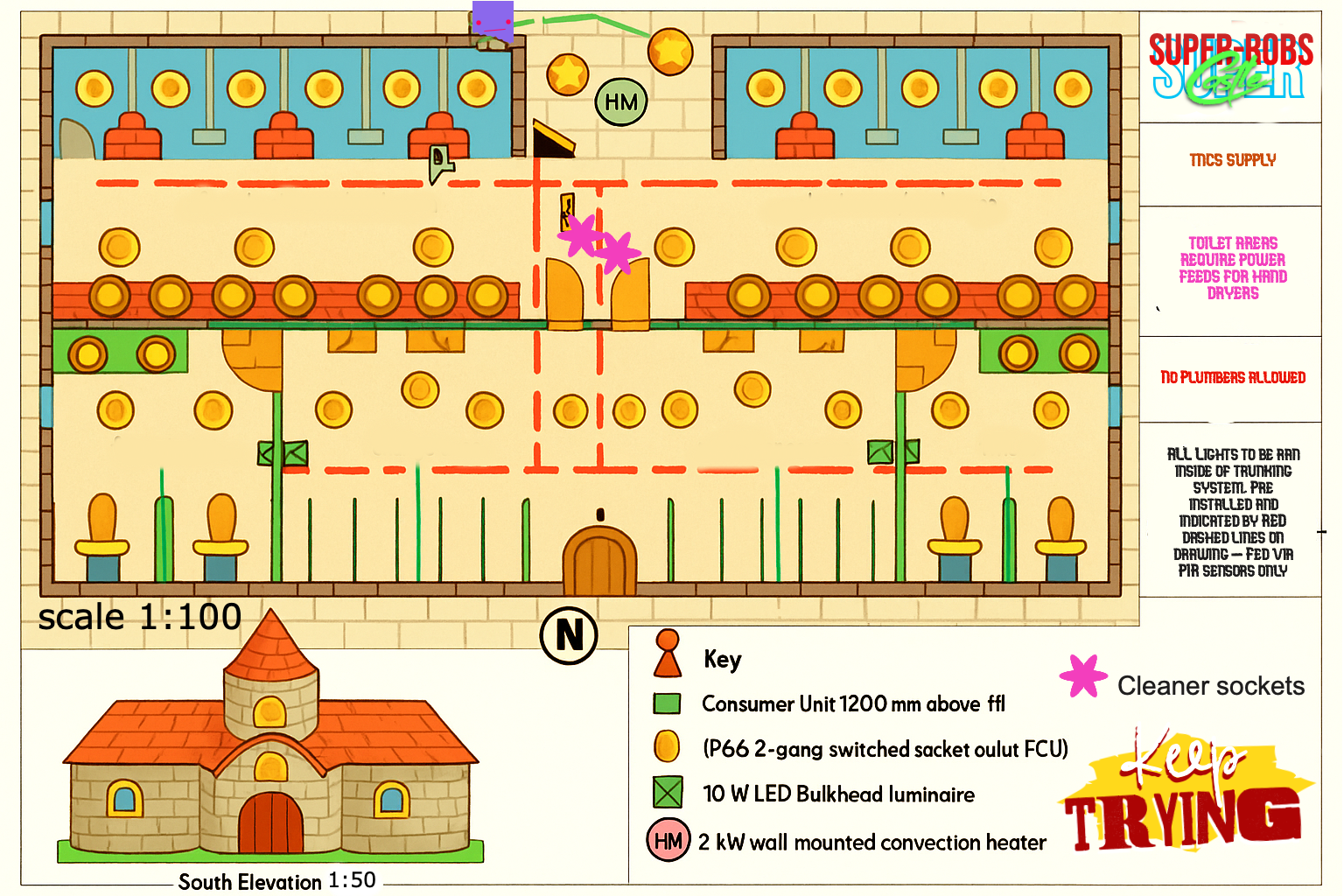

Now attempt the below Cable calculation. Remember you are the designer, You must determine the cable type to be used & with which reference method.
